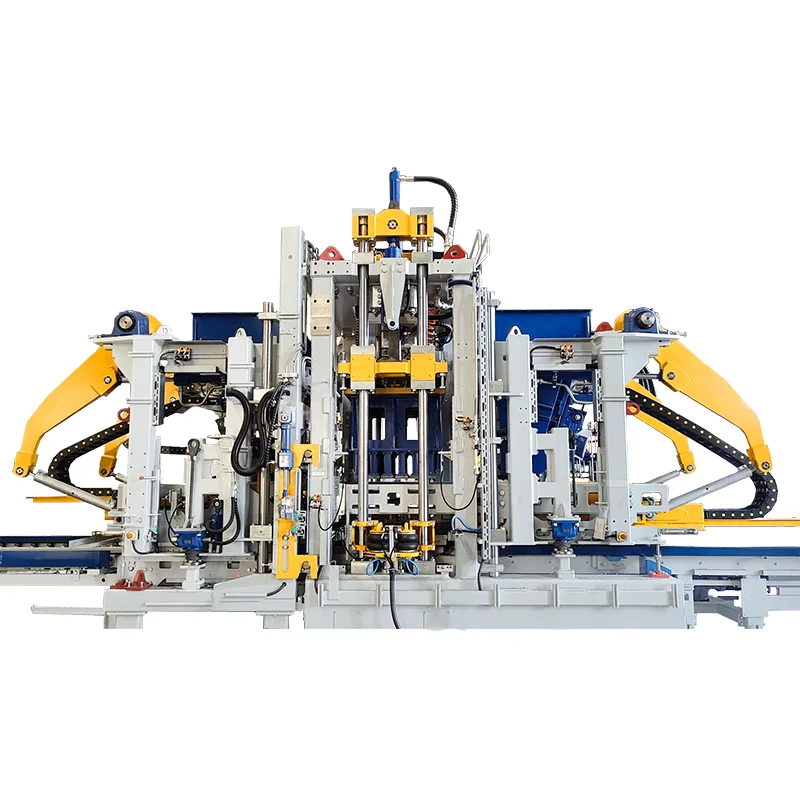

ZN1500-2 Single Pallet Big Board Machine

1 Quick Mould Changing System
● 3T capacity crane for mould changing.
● ZN1500-2 delivered with a tamper locking that is compatible with moulds from other manufacturers.
● Changing the mold within 15 minutes.

2 Lowering table for wet products

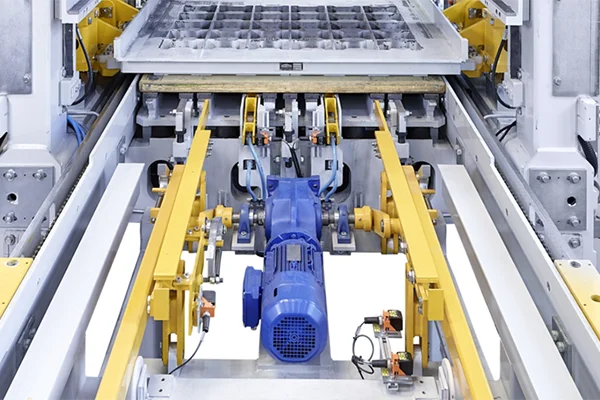

● Special designed lowering table, more faster speed to deliver wet products to wet side conveyor.

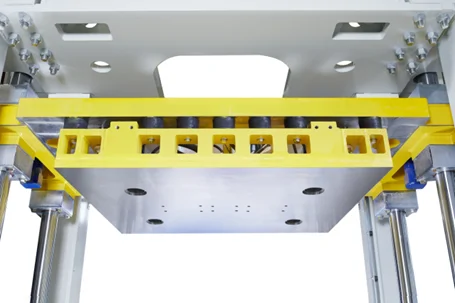

3 Machine Frame

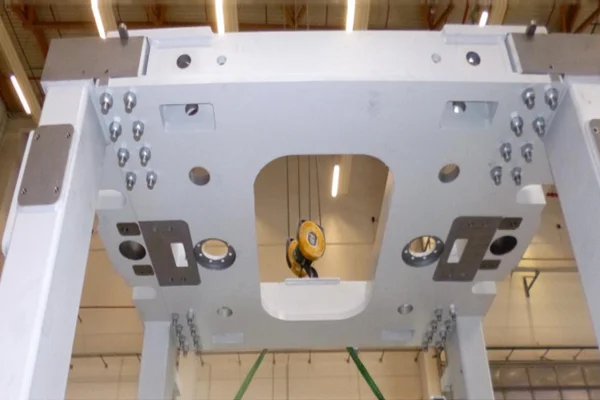

● ZENITH is the only company using bolted machine frames.
● The bolted and extremely robust machine frame consist of side frames, vibration table beam, vibration table motor beam and crosshead.
● The frames of competitors crack in time due to inflexible welding designs.
● The bolted Zenith machine frame is stable enough to bear intense pressure but also flexible enough to compensate the high vibration power. Therefore the durability is much longer.

4 Easy Maintenance

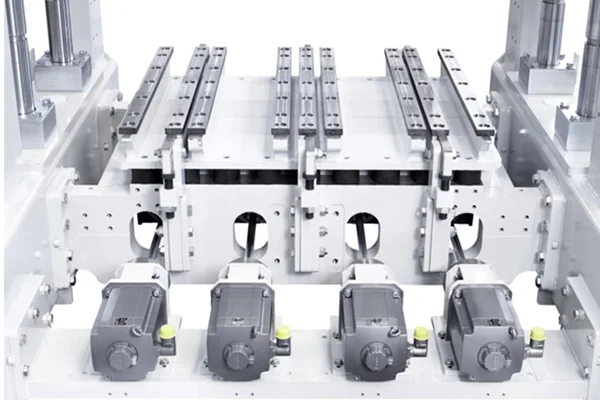

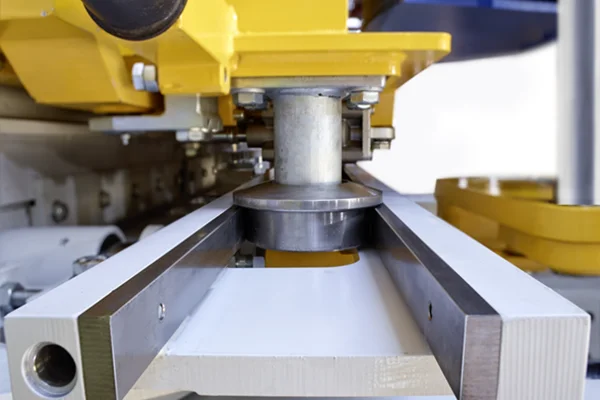

● The welded guide rails of the filler boxes are fitted with exchangeable wearing parts. These result in much lower costs and assembly time.
● The cross beam has been developed in such a way that the columns can be moved singly sidewards. This results in appreciably more rapid and less physically intensive maintenance work.
● Individual modules, motors, engine power adapters and computer units can be exchanged easily without the use of a service engineer or programmer.

5 Ultra Dynamic Vibration System
● The ZENITH Ultra Dynamic Vibration System guarantees enormous dynamics and at the same time high compaction of the products.

● The extremely dynamic vibration system has been developed in collaboration with the leading German University of Aachen. ● The innovative vibrating system has been designed to achieve precise amplitudes in a very short response time, while ensuring flexible adjustability.
● The high dynamics are achieved through the use of the latest SEW servo technology and enable the adjustment of the offset angle in less than 0.1s.

6 Electric Control System - User Friendliness
● To guarantee an optimal user friendliness the ZN1500-2 is equipped with a self-explanatory and intuitionally visualization concept.
● The clearly arranged visualization only display the most essential components. However, with a few finger pushes every detail of the plant can be selected and controlled in real-time.

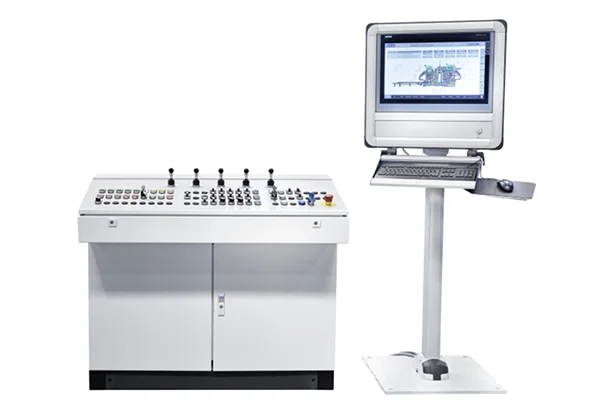

● The ZN1500-2 comes with a mobile Siemens touch panel that ensures maximum operating convenience. The machine operator can carry the handy panel and operate the machine from different places.

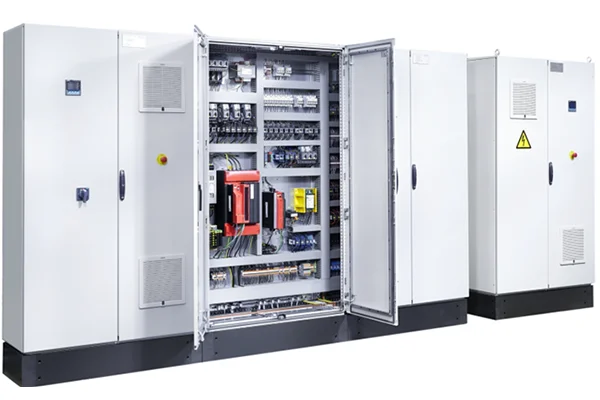

7 Electric Control System
● Thanks to the intense Research & Development cooperation with Siemens since 2014, numerous innovations could be developed.
● ZN1500-2 has been equipped with the implementation of the latest industry 4.0 standards.
● With Siemens S7 1500 TIA Portal all components and processes of the machine are interconnected and can be totally controlled and optimized in real-time.

8 Advanced Hydraulic System

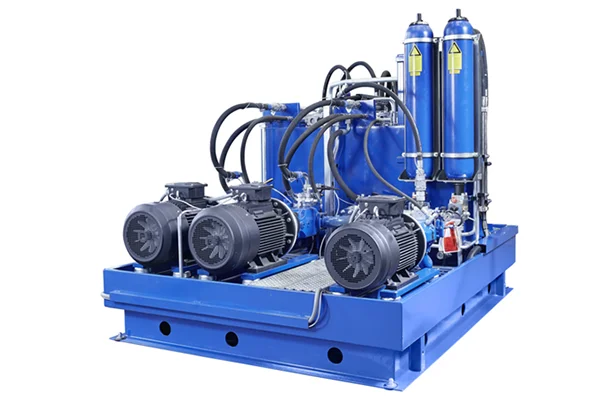

● ZN1500-2 equips with two main pumps (capacity 270l/min) and two pressure accumulators for quick cycle times during regular production.
● In case of a pump failure, the machine can be operated with the second pump to avoid a production stop.
● The additional pump for setting mode (capacity 20l/min) guarantees for a safe limitation of speeds for the respective movements.

9 Leading Intelligent Cloud Service System

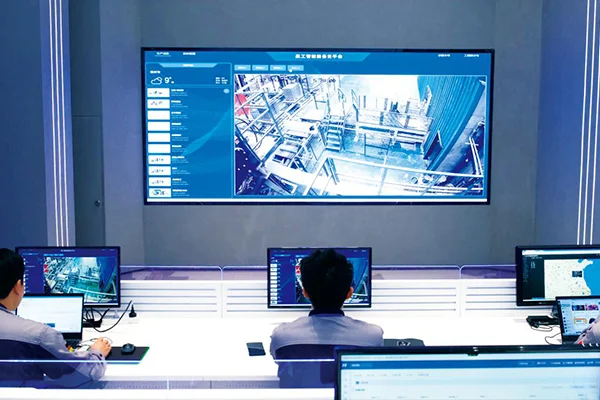

QGM intelligent cloud service platform is the use of cloud technology, data protocol communication technology, mobile Internet technology, equipment modeling, artificial intelligence, big data and other technologies in the enterprise intelligent equipment operation data and user habit data collection, online monitoring, remote upgrade; for the whole life cycle of real-time tracking and monitoring of machine status, for customers to achieve remote hidden fault prediction, fault diagnosis and online maintenance.
