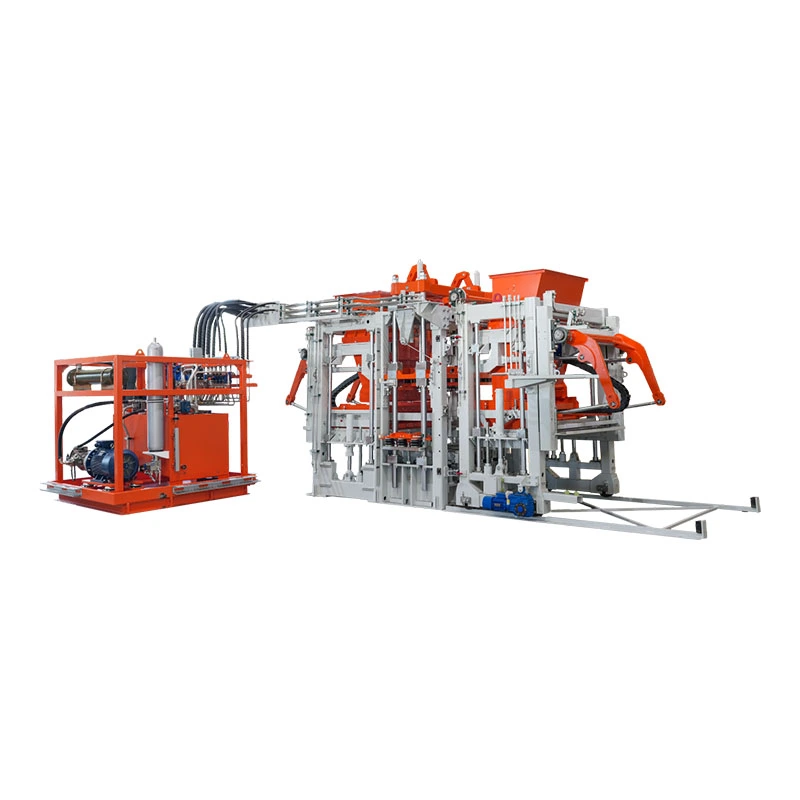

Grass Paver Permeable Molding Machine

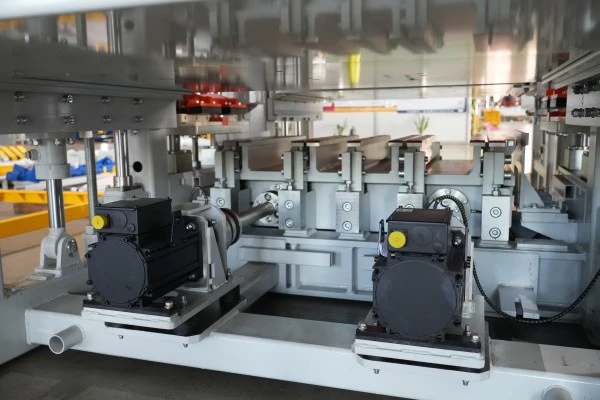

1 Four-Axis Servo Vibration System: Precise Excitation, High-Efficiency Compaction
Servo Drive and Mechanical Balance: Four servo motors synchronously drive four sets of eccentric shafts. The centrally symmetrical layout effectively cancels out horizontal vibrational forces, outputting only stable and efficient vertical excitation forces, thereby significantly reducing resonance losses in the equipment.
Stepless Adjustment and Recipe Adaptation: The servo system supports stepless adjustment of excitation force, allowing vibration parameters to be precisely set according to the requirements of different products, effectively improving product compaction, dimensional accuracy, and overall production stability.

2 Two-Axis Servo System (Optional): Intelligent Coordination, Flexible Production
Bus-Based Closed-Loop Control and Precise Control: An optional dual-servo motor synchronous drive configuration is available, equipped with multi-axis servo drives and a bus-based closed-loop control system to precisely control vibration frequency, amplitude, and phase.
Process Coordination and Efficient Switching: This system enables intelligent coordination with processes such as material feeding and pressing, and supports rapid switching of vibration parameters to accommodate different brick types and production processes, further enhancing product consistency and production efficiency.

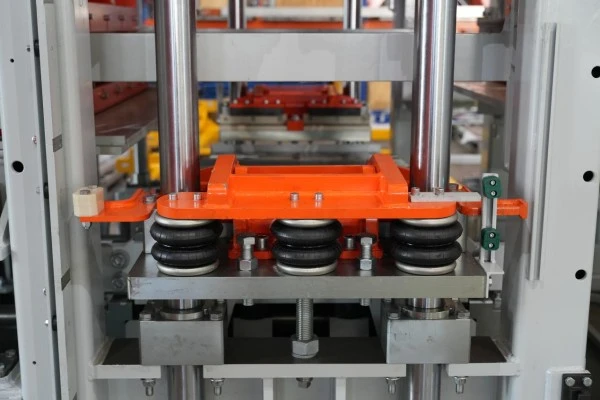

3 Air Spring Mold Frame Clamping System: Ultra-Fast Clamping, Seamless Changeovers
Air Springs and Rapid Response: Replacing traditional mechanical clamping methods with air spring inflation and deflation control, this system enables rapid clamping and release of the mold frame. This design features fast response times, uniform clamping force, and precise positioning.
Enhanced Stability and Reduced Cycle Time: The air spring clamping system effectively improves mold stability and reduces vibration-induced wear, while significantly shortening mold changeover time and markedly increasing the equipment’s overall utilization rate.

4 Vibrating Ram System: Flexible Quick-Change, Synergistic Compaction
Air-Cushion Locking and Rapid Maintenance: The ram features an innovative air-cushion quick-locking mechanism that enables efficient installation, replacement, and securing, significantly reducing daily maintenance time and improving efficiency when switching between different products.
·Coordinated Vibration and Quality Improvement: High-efficiency vibration motors are mounted on both sides of the ram, ensuring more uniform force distribution on the concrete during compaction. This effectively enhances the overall density, compressive strength, and surface finish quality of the finished products.

5 Quick Mold Ejection System: Intelligent Positioning, Enhanced Efficiency
Fully Automatic Mold Operation: Equipped with a quick mold ejection system, it enables automatic mold insertion, precise positioning, and rapid ejection, completely replacing traditional manual assembly and disassembly methods.
Reduced Downtime, Multi-Line Switching: The modular design further shortens mold changeover cycles and improves equipment uptime, perfectly meeting the needs for rapid switching and flexible production of concrete products in multiple specifications and varieties.

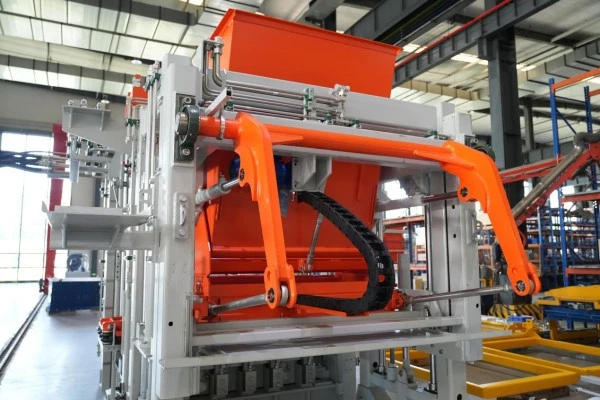

6 Hydraulically Driven Base Material Feeding System: Precise Control, Uniform and Dense
Hydraulic Drive, Precise Control: Utilizing a high-efficiency hydraulic drive system, the system precisely controls the operating speed and thrust of the hydraulic cylinders to ensure uniform and stable filling of the mold cavities with concrete base material, guaranteeing a smooth and controllable placement process.
Eliminates Blockages and Leaks, Maintains Product Consistency: The system operates smoothly and reliably, effectively reducing material jams, leaks, and segregation. This ensures consistent placement for every product, thereby enhancing product quality and production continuity.

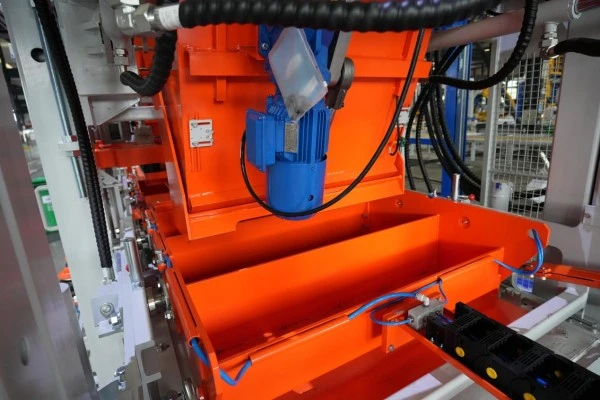

7 360° Rotating Arch-Breaking System: Comprehensive Arch Breaking with No Dead Zones
Full-Range Rotation and Synchronized Operation: The bottom feeder utilizes an independent reduction drive mechanism to drive wear-resistant material-displacing blades in continuous 360° rotation, synchronized with the material distribution process, thereby achieving comprehensive arch breaking in the silo.
·Eliminates Bridging and Reduces Waste: Compared to traditional oscillating or vibrating arch-breaking methods, this technology effectively prevents material bridging and blockages, significantly reducing downtime for material clearance and improving equipment operational efficiency and reliability.

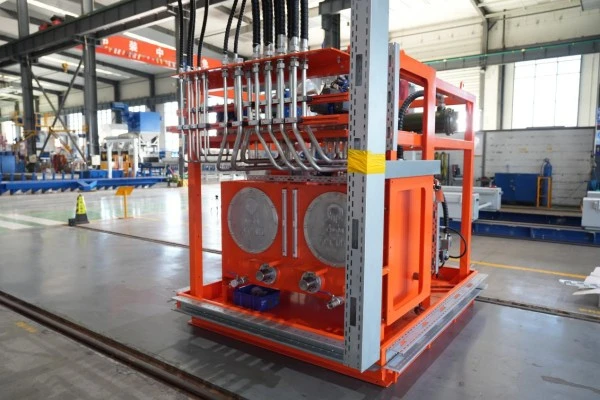

8 Integrated Hydraulic Power Unit: Highly Integrated, Stable, and Energy-Efficient
Modular Integrated Design: The hydraulic power unit, control system, and fluid lines are integrated into a single module. Compared to traditional split-type designs, this significantly reduces the number of external piping connections, lowers the risk of leaks, and improves system response speed and operational stability.
High-Efficiency, Low-Consumption Continuous Operation: The integrated design makes daily maintenance and servicing more convenient. The system offers advantages such as fast response times, stable pressure, and low energy consumption, meeting the requirements for long-term, continuous, and efficient equipment operation.
